High Voltage Breakdown Tester

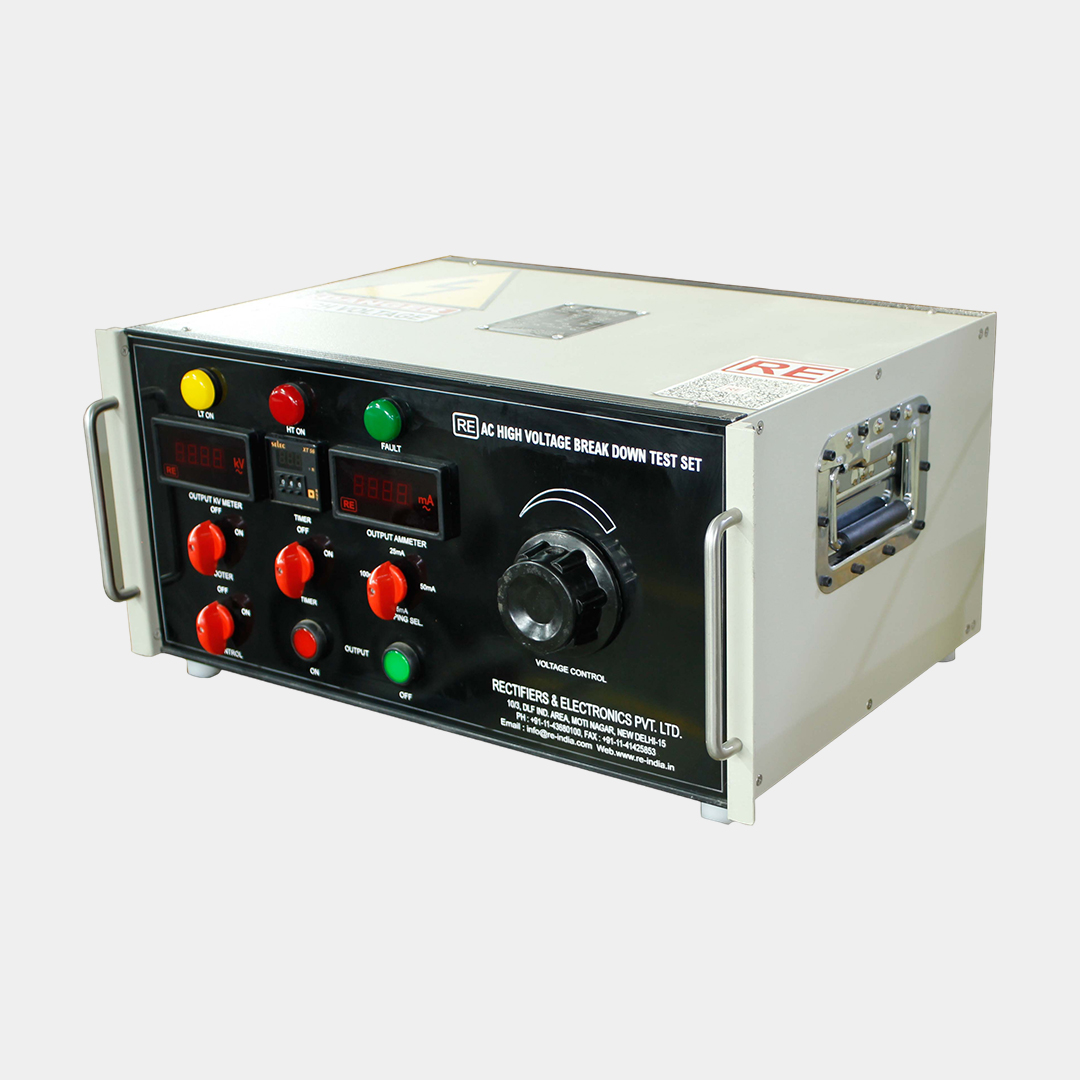

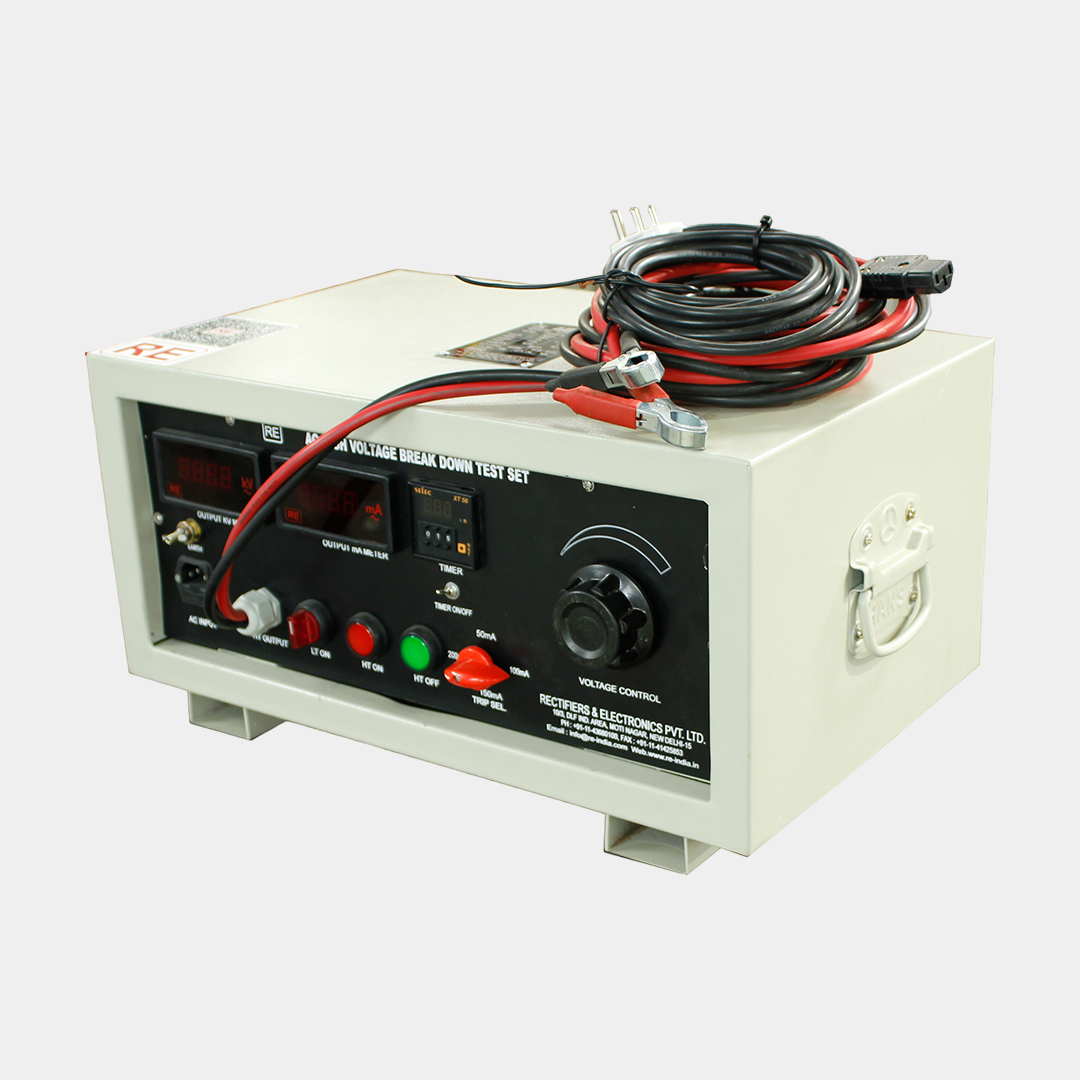

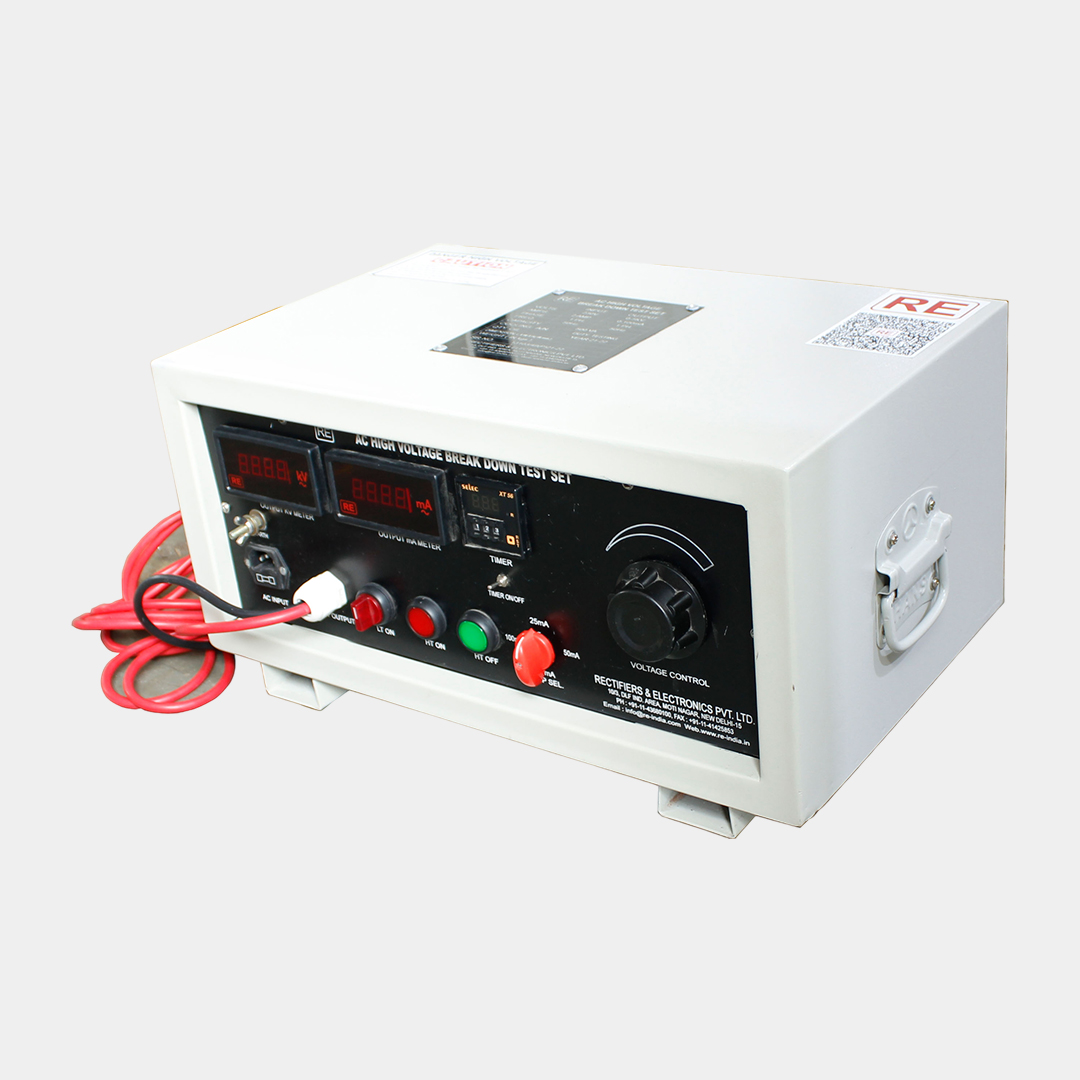

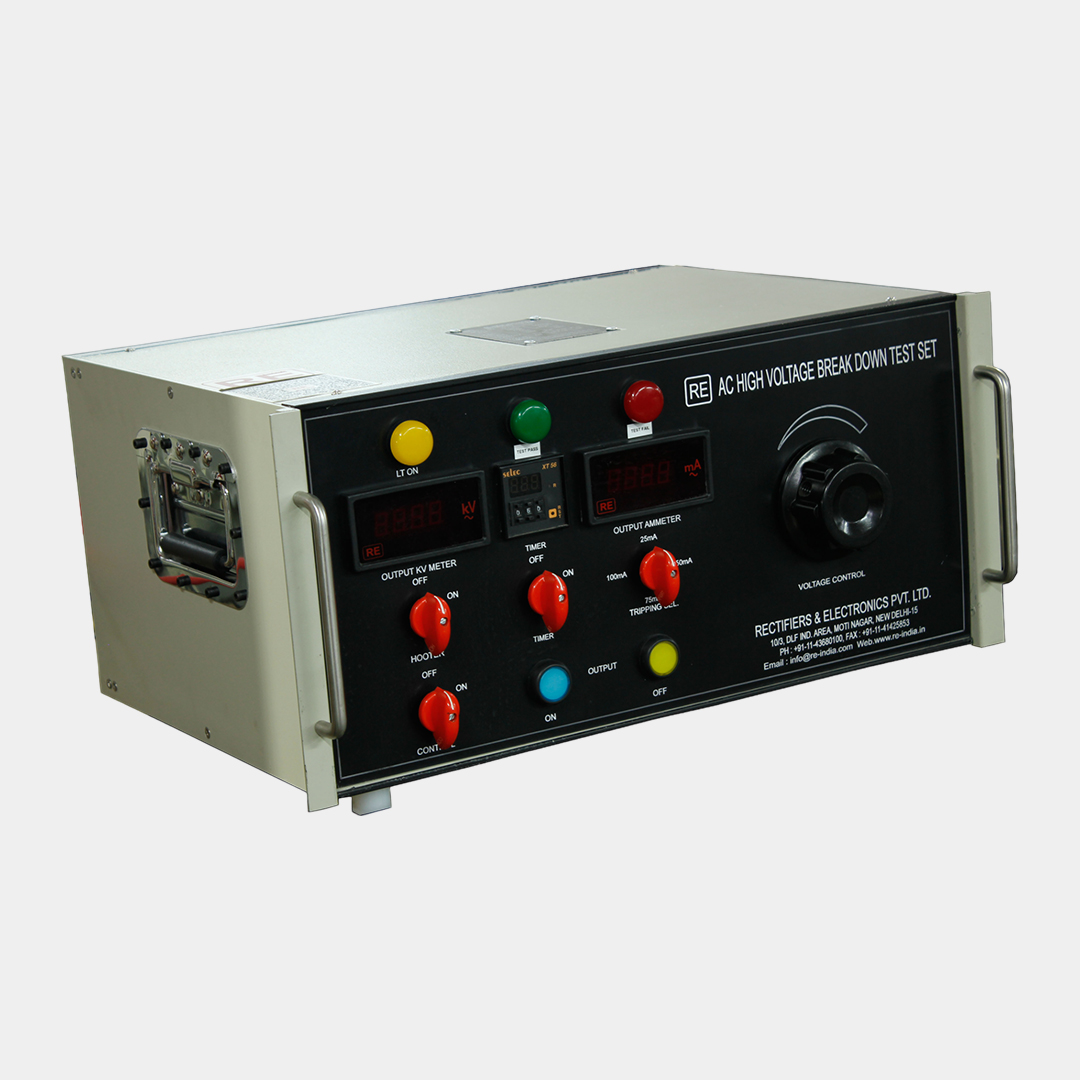

AC High Voltage Breakdown Test Set/AC Dielectric Tester (0-15KV, up to100mA)
Application – LT equipment and component manufacturer

Description/Overview

AC High-Voltage Breakdown Testers/AC Dielectric Testers are meticulously designed to assess the insulating strength of low-voltage equipment and everyday appliances. These testers adhere to stringent IS/IEC safety protocols, ensuring their effectiveness in both development labs and bustling factories. Even the most compact models boast all the essential features found in top-of-the-line, high-capacity units. Safety remains paramount, making these testers the perfect choice for rigorous testing, wherever it’s needed.

Request Quote
  • Lightweight design.
  • Portable for testing any application.
  • Additional and advanced safety features.
  • Comprehensive HV testing facility.

Standard Accessories

  • I/p Lead – 3 meter
  • O/p Lead – 3 meter

Optional Accessories

  • Extended HT Cable (3 meters+)
  • Earthing Lead.
  • Crocodile Clamp
  • Safety Interlock
  • Switch/Dead Man Switch
  • Grounding Rod
  • Extended HT Cable (3m+)
  • Grounding Wire
  • Alligator Clip
  • Safety Interlock Switch
  • Earthing Stake
  • Handheld HV Probe Set
Parameters Description
1 Input Voltage 230V
2. Output Voltage  0-15KV up to 100mA as required
The unit will be housed in M.S Sheets housing and will compete with the following:-
  1. Input ON/OFF switch with fuse.
  2. Input ‘ON’ Indicator
  3. HT ON Push Button.
  4. HT ON Indicator
  5. Push Button to increase/decrease the output.
  6. H.T. Probe Set With H.T. Cable
  7. KV Meter Digital
  8. mA Meter Digital
  9. Tripping Selector with tripping @25%, 50%, 75%, and 100%mAmps as range given
  10. Digital Timer
  11. Input Lead – 3 meters.
  12. Output Lead – 3 meters.
  13. Zero Start Interlock.
